Alfa Valvole: your preferred supplier

Alfa Valvole has a consolidated presence in the shipbuilding market:

  • Cruise (cruise ships, passenger transport ships) -> ship dimensions up to 380 mt, ca. 1500 passengers’ cabins
  • Yacht (luxury shipyard) → ship dimensions up to 35 mt (fiber hulls) or 70 mt (metal hulls).
  • Military
Main customers are:

Fincantieri

Alfa is preferred supplier (on specification) since more than 20 years, the first choice of ball valves for new constructions is Alfa Valvole.

Warstila

Alfa cooperates Worldwide with the Group, mainly in support to Fincantieri society.

San Lorenzo / Benetti Yacht / Mariotti Shipyard

Supply of valves (manual and actuated) on all on-board services, main and auxiliaries.

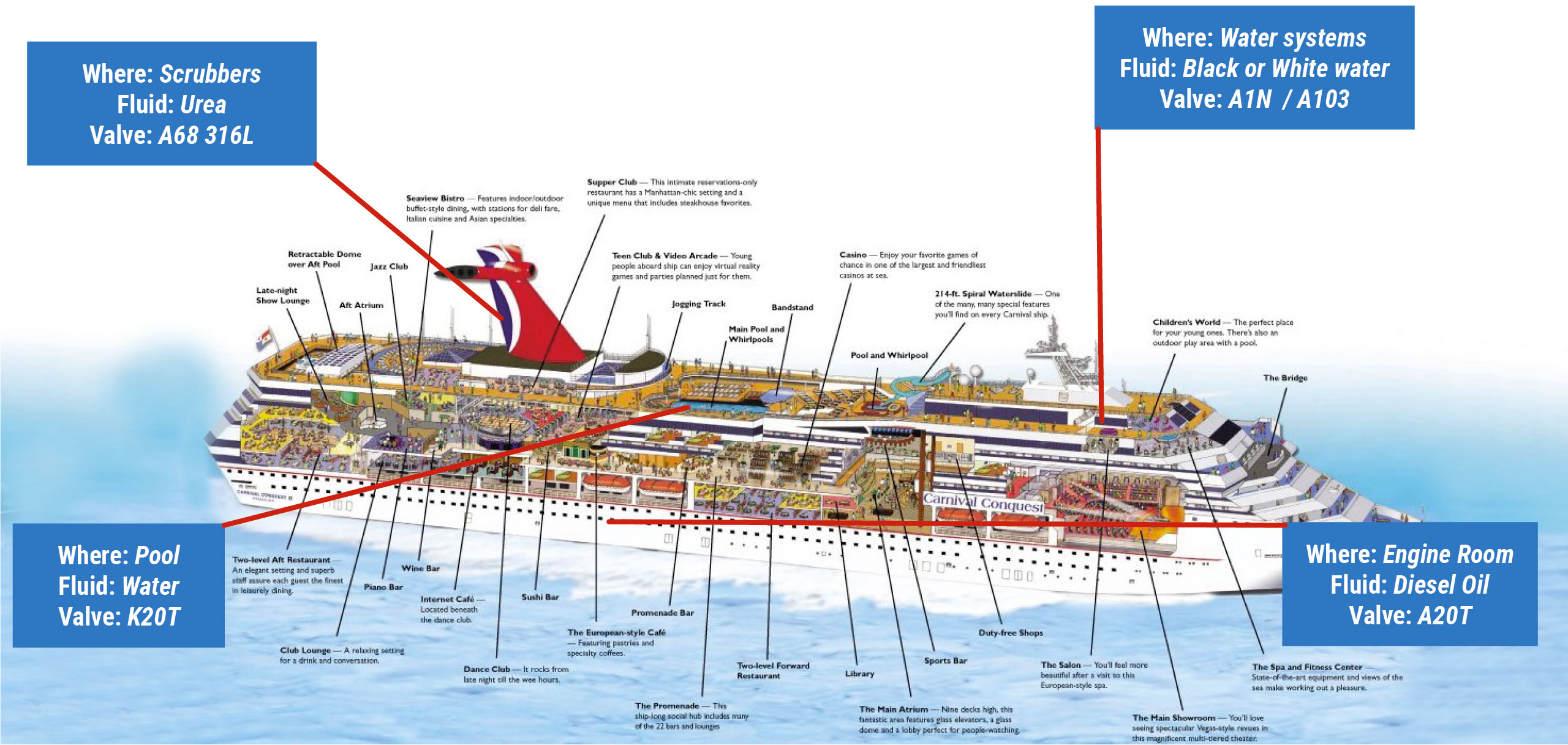

Alfa Standard applications



Water Treatment
(either white or black, cabin services, kitchen and swimming pools)

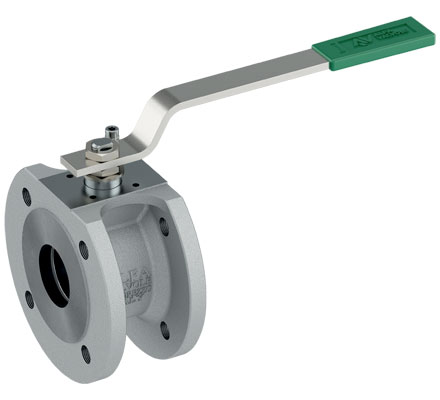

A10NF

Body type: wafer type ball valve
Design according to ASME B16.34, EN 12516-1, PED 2014/68/UE

K20 T

Body type: screwed body type ball valve
Design according to ASME B16.34, EN 12516-1, EN 17292, PED 2014/68/UE

Engine room lines management
(diesel fuel for injectors, oil for machine and auxiliary lubrication)

A68

Body type: Split body ball valve - Full bore
Design according to ASME B16.34, EN 12516-1, EN 17292, API6D (ANSI), PED 2014/68/UE

A20 T

Body type: composed by two screwed parts with threaded or welded connections
Design according to ASME B16.34, EN 12516-1, EN 17292, PED 2014/68/UE

Hot water treatment
(warming up)

A10NF

either manual or actuated (electric actuator) Body type: wafer type ball valve
Design according to ASME B16.34, EN 12516-1, PED 2014/68/UE

Fire prevention system management

A10NF

either manual or actuated (electric actuator) Body type: wafer type ball valve
Design according to ASME B16.34, EN 12516-1, PED 2014/68/UE

Bilge services transmissions

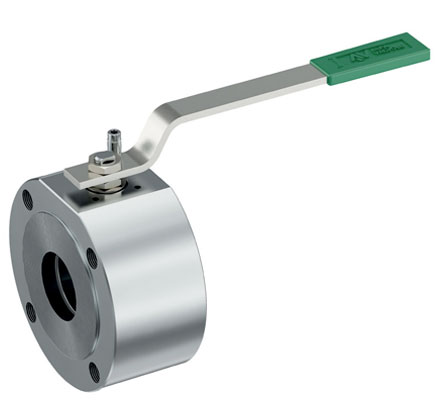

A10

either manual or actuated Body type: wafer type ball valve
Design according to ASME B16.34, EN 12516-1, PED 2014/68/UE

A68

either manual or actuated Body type: Split body ball valve - Full bore
Design according to ASME B16.34, EN 12516-1, EN 17292, API6D (ANSI), PED 2014/68/UE

A103

either manual or actuated Body type: three-way ball valve, wafer body
Design according to ASME B16.34, EN 12516-1, PED 2014/68/UE
