A consolidated expertise in transportation industry.

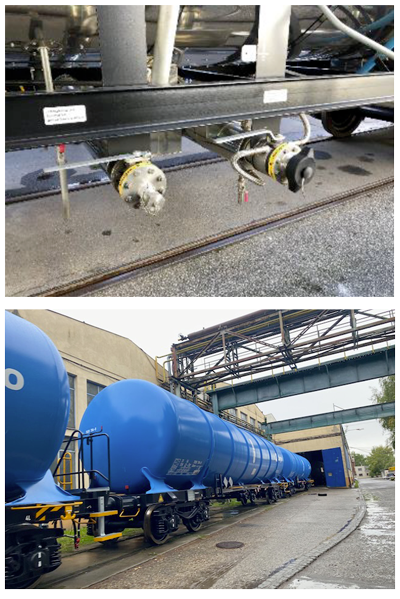

Alfa Valvole has a full range of ball valves designed to be used on tank wagon and trucks.
Knowing that this market is highly diversified, both in terms of operating conditions and handled fluid, both in terms of customer specification, we developed a product portfolio of valves suitable to satisfy almost every customer need and offering a solution for Dangerous Liquid and Gases Handling.
Product range is designed, tested and certified following strict requirements of ADR/RID regulation.
Valves can be used as
- Discharge – charge product
- Air venting
- Tank heating or cooling insulation jacketing connections
We cooperate with consolidated partner in Whole Europe covering both OEM both Service Workshop (through spare parts and spare valves), with these main partners:
| PARTNER | COUNTRY | EQUIPMENT |
|---|---|---|
| NORSERVIS | Czech Republic - Slovakia - Poland - Romania |
Spare Parts |
| GENERAL ROBINETTERIE | France - Belgium |
Spare Parts |
| BONETTI ARMATUREN | Germany |
Spare Parts |
Where we are not presente through a partner, you can refer to our Sales Department in order to fulfill your requirements and satisfy your needs.
Certification
- Valves covered by T-PED certification according to ADR/RID and EN 14432:2014, produced under I.I.S (in-house inspection service)
- M61455/20, M61456/20, M61457/20 e M61458/20 certification for the use of valves on road tanks for transportation of hazardous goods in liquid status, approved by CPA (italian agency for transport regulation)
- ADR/RID: Certifications for hazardous liquefied gas transportation
Alfa Valvole has a full range of ball valves designed to be used on tank wagon and trucks.
Products available
| MODEL | RATING | BODY MATERIAL | DN |
|---|---|---|---|
 A10 NF |
PN 16 |
Carbon steel / Stainless Steel |
40 to 100 |
 A11 NF |
PN 16 |
Carbon steel / Stainless Steel |
40 to 100 |
 A10a VAG |
PN 16 |
Stainless Steel |
40 to 100 |
 A68 / A68K / A69 / A69K |
PN 16 / PN 40 |
Carbon steel / Stainless Steel |
40 to 100 |
 A24K |
PN 40 / PN 63 |
Carbon steel / Stainless Steel |
15 to 80 |
A68 (Flanged Ball Valve)
Starting from a standard design, A68 T-PED fullfills all requirements coming from high demanding applications and market: easy inline maintenance, wide range of facing connections available, all suitable to be assembled on rail and road tank with locking devices and additional safety devices.
A1N (Wafer Ball Valve)
Featured by specific design (VAG Model) or starting from a standard design (A10NF), light and compact, suitable for assembly on rail tank with locking devices and additional safety devices.
A1J (Jacketed Wafer Ball Valve)
Starting from common wafer (A1N or VAG model only DN100) design, this product combine all customization possibilities for the “basic design with a compact heating jacket welded on valve body, for applications focused on chemical heated products transportation.
Let’s Work Together
From spare parts supply to OEM new wagon equipment, we’re here to support your transportation equipment valve needs. Contact the ALFA Valvole team to discuss how the T-PED Ball Valves can satisfy your needs:
Tel: +39 02 90296206
